1988 Land-Rover Range Rover EFi Series I

1988 Land-Rover Range Rover Series I in Boon, TV Series, 1986-1992 IMDB Ep. 4.05

Class: Cars, Off-road / SUV — Model origin: UK

1988 Land-Rover Range Rover EFi Series I

[*][*][*] Vehicle used by a character or in a car chase

Comments about this vehicle

AuthorMessage

Sandie SX

2012-05-17 21:19

Quote

[Image: rangerover.2.jpg] [Image: rangerover2.jpg] [Image: rangerover5.jpg] [Image: rangerover6.1.jpg] [Image: rangerover8.jpg]

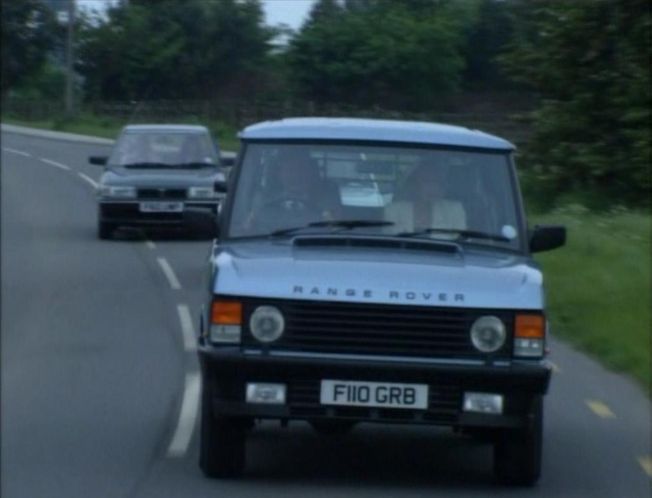

The vehicle details for F110 GRB are:

Date of Liability 01 09 2006
Date of First Registration 02 09 1988
Year of Manufacture 1988
Cylinder Capacity (cc) 3528cc
Fuel Type PETROL
Vehicle Colour BLUE

When Harry and Rocky go to a Land-Rover dealer to investigate the car a 1989 model is seen in the background (you can tell by the L-R oval on the grill).
[Image: rangerover3.1.jpg] [Image: rangerover4.1.jpg]

Neptune US

2012-05-17 22:19

Quote

The 1988 model year was the last model year the Range Rover used Land-Rover’s own permanent four-wheel drive system with the Land-Rover LT230T transfer case.

For the 1989 model year, Range Rover’s 4x4 system underwent a major change. All Range Rovers now used a permanent four-wheel drive system supplied by BorgWarner and featured a two-speed dual range BorgWarner 13-61-004 transfer case with automatic center differential lock. The automatic differential lock was realized by adding a "viscous coupling unit" (VCU) to the center differential.

The automatic viscous lock was progressive, increasing the lock-up percentage based on the severity of traction loss at either the front or rear drive wheels. Under normal driving the special viscous fluid remained in a liquid-like state, allowing the center differential to permit the front/rear propeller shafts to operate independently of each other.

When either the front or rear drive wheels lost traction, the friction produced by the front/rear propeller shafts turning at excessively different speeds would heat-up the viscous fluid, causing it to change from a liquid state to a solid state. Thus locking the center differential which in-turn locked the front/rear propeller shafts together.

The new BorgWarner transfer case was said to be smoother and quieter than the older Land-Rover transfer case, however, it removed control of the four-wheel drive system from the driver.

By doing this, the driver didn’t have to worry about when he or she should lock the center differential, as it would now lock itself when needed. This also prevented clueless drivers from having the center differential locked on high-traction surfaces such as paved roadways (which would damage the 4x4 system). All well and good, except now experienced off road drivers could not lock or unlock the 4x4 system when conditions merited.

Sandie SX

2012-09-23 19:08

Quote

Another 1989 in 5.06:
[Image: rangerover.16.jpg] [Image: rangerover2.17.jpg] [Image: rangerover3.12.jpg]

Sandie SX

2013-06-09 02:15

Quote

6.01 [*][*]:
[Image: rangerover.39.jpg] [Image: rangerover2.31.jpg]

6.05 [*][*]:
[Image: rangerover.40.jpg]

-- Last edit: 2013-06-09 03:37:45

Sandie SX

2013-12-07 05:29

Quote

7.06 [*][*]:
[Image: rangerover.49.jpg] [Image: rangerover002850.jpg] [Image: rangerover3.26.jpg]

At least a 1990, possibly only a 1990 as I can't see the higher fuel flap.
